Real cutting patterns — no AI guesswork

Photo → Intarsia Cutting Pattern

Upload a photo and get a numbered, wood-coded pattern with grain arrows — exported as a scalable SVG and a 1:1 printable PDF you can tape together and cut.

🪵

Drop a photo or click to upload

JPG / PNG · best with a plain background

Pattern nameFinished width: 11"Sets the real print size & number of PDF tiles.

📐

Your numbered cutting pattern will appear here.

Craftsmanship Standard

The 3-Sheet Judy Gale Roberts Blueprint Standard Explained

Master intarsia designs require more than a 2D line drawing. Our studio outputs the complete 3-sheet package established by industry pioneer Judy Gale Roberts.

Sheet 1Visual Benchmark

Master Finished Artwork

Full-Scale Visual Reference

Provides a full-color photograph and render of the completed project. Woodworkers use Sheet 1 to evaluate natural grain orientation, wood tone contrasts (Walnut vs. Cherry vs. Maple), edge roll transitions, and overall proportions before making the first cut.

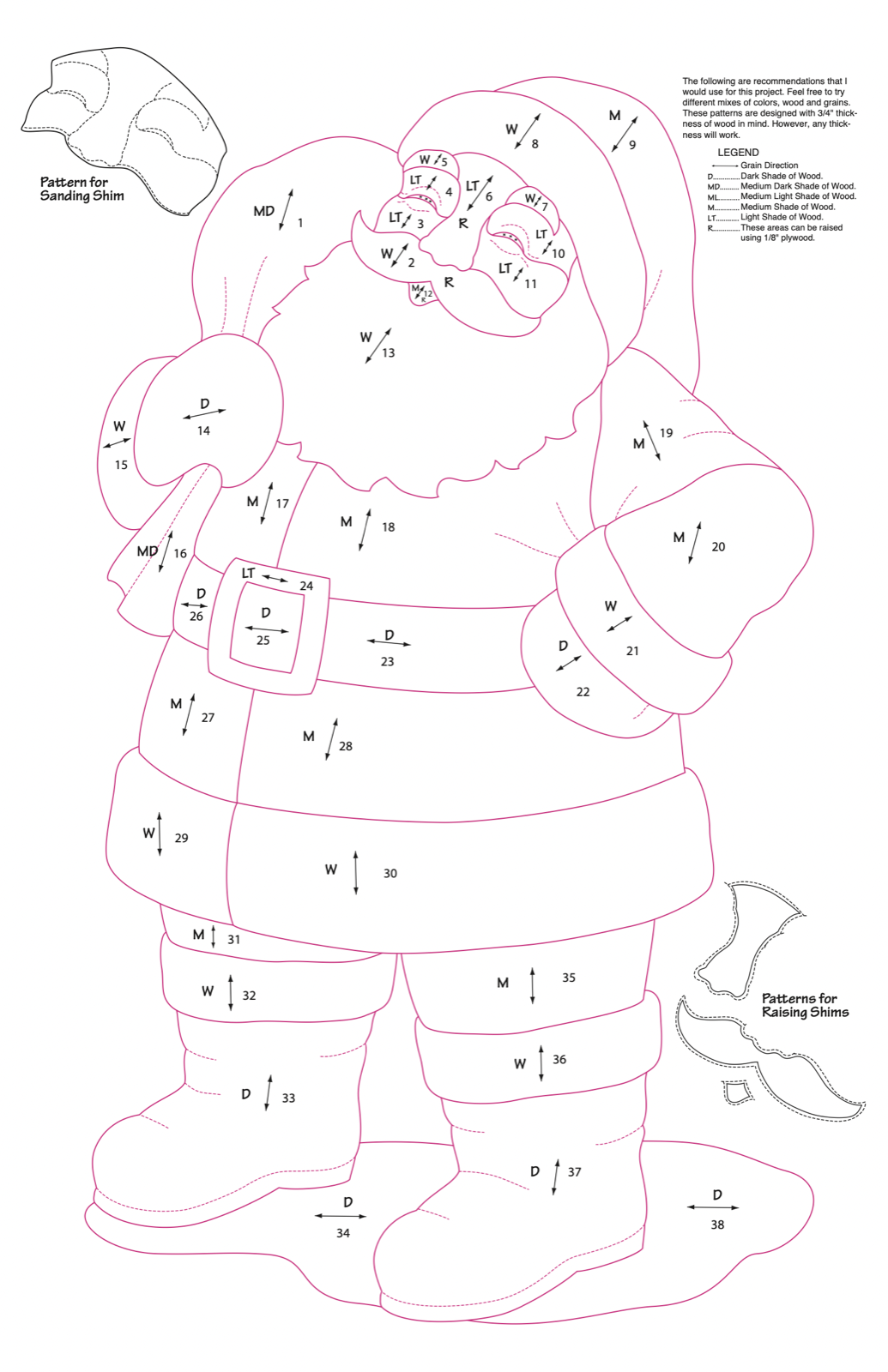

Sheet 21:1 Workshop Cut Template

Master Cutting Stencil

Numbered Blueprints & Grain Arrows

The primary scroll saw template. Each segment contains a piece number (1 to N), a hardwood shade code (W, LT, M, MD, D), and double-ended arrows indicating grain direction. Includes full-scale cutting outlines for 1/8" raising shims and protective sanding templates.

Sheet 3Sculpting Roadmap

3D Sanding & Depth Guide

Contouring Elevations & Bevels

Maps the physical topography of your piece using color-coded elevation zones: Pink indicates 1/8" riser shims for foreground elements; Light Blue marks deep 1/4" hollows; Yellow marks 1/2" mid-planes; Green represents full 3/4" rounded contours with directional rolling arrows.

How to Build from an Intarsia Pattern: 4 Workshop Steps

Follow proven scroll saw and shaping techniques to bring raw hardwood blanks into a museum-grade dimensional art piece.

01

Select Wood & Grain Flow

Inspect your hardwood stock for clean grain lines. Rotate each board to align the Sheet 2 grain arrow parallel with the natural wood fibers for maximum reflection and depth.

02

Apply Template with Painter's Tape

Cover the hardwood blank with blue masking tape, then affix the printed paper blueprint using light repositionable spray adhesive. This protects the wood and lifts cleanly post-cut.

03

Scroll Saw Precision Cutting

Use a #3 or #5 reverse-tooth blade at medium speed. Cut directly down the center of the blueprint line, cutting mating pieces sequentially to ensure tight interlocking joints.

04

3D Sanding & Elevation Risers

Glue 1/8" plywood shims under 'R' pieces. Follow Sheet 3 elevation zones to round edges and sand recesses to 1/4" or 1/2" using a rotary drum or flap sander.

Hardwood Species Matrix for Intarsia Woodworking

Intarsia utilizes the natural, un-stained hues of real hardwoods. Match each piece code to authentic lumber for optimal tonal contrast.

Shade & Role	Recommended Species	Project Application	Grain & Cutting Properties
Dark Shade (D)	American Black Walnut / Wenge	Shadows, outlines, boots, belts, hair, pupils, deep accents	Cuts smoothly with minimal tear-out; tight chocolate grain.
Medium Dark (MD)	Western Red Cedar / White Oak	Tanned leathers, backgrounds, accessories, rustic mantles	Cedar is soft and aromatic; Oak provides pronounced medullary rays.
Medium Shade (M)	Wild Black Cherry / Red Alder	Warm anatomy, animal fur bodies, robes, drapery transitions	Ages to a deep warm patina over time; excellent for drum sanding.
Light Shade (LT)	Yellow Birch / Light Cherry / Basswood	Faces, cheeks, noses, buckles, soft highlights, subtle midtones	Very fine uniform texture; ideal for crisp relief sculpting.
White Accent (W)	Hard White Maple / Aspen / American Holly	Snow, Santa beard, eagle crown, white fur, eyeball highlights	Holly provides pure ivory tone; Aspen is lightweight and clean.
Red Accent (R)	African Padauk / Redheart	Santa's coat, cardinal feathers, vibrant banners, lips, focal points	Deep crimson natural color; requires sealed sanding to avoid bleeding.

Explore Tested & Ready-to-Cut Woodworking Plans

Looking for fully drafted, workshop-tested intarsia blueprints, fretwork silhouettes, or bandsaw box plans with instant digital download?

Browse Intarsia Patterns Wood Species Guide Beginner Intarsia Guide Scroll Saw Templates

Craftsman Knowledge Base

Intarsia Woodworking Studio FAQ

Expert answers on the 3-sheet Judy Gale Roberts blueprint standard, hardwood selection, blade kerf, grain alignment, and contour sanding.

What is the Judy Gale Roberts 3-sheet blueprint standard?

The Judy Gale Roberts standard is the benchmark for intarsia woodworking plans worldwide. It provides three synchronized sheets for each project: Sheet 1 is the full-color master artwork reference; Sheet 2 is the 1:1 cutting blueprint featuring numbered segments, hardwood shade codes (W, LT, M, MD, D), double-ended grain direction arrows, and raising shim templates; Sheet 3 is the 3D contouring and sanding depth guide showing exact riser elevations (1/8" risers) and contour roll directions.
